Electric Muscle Therapy Stimulator High-Frequency Interferential Physiotherapy Device

Features:

Product Advantages：

1. A total of 60 programs(Mode).

2. TENS： 23 fixed + 2 adjustable programs.

3. EMS： 13 fixed + 2 adjustable programs.

4. IF: 8 fixed + 2 adjustable programs.

5. RUSS: 8 fixed + 2 adjustable programs.

6. Adjustable intensity：0 - 120 levels. Max: 120mA.

7. Adjustable working time：5 - 90 minutes. 1min/step.

8. Mode and intensity of two-channel can be controlled separately.

Custom adjustable features

1. Adjustable pulse width and frequency.

2. Adjustable Working time.

3. Adjustable Cycle time.

4. Adjustable Intensity ( 1-120mA).

5. Adjustable Ramp Up/Contraction/Ramp Down / Relaxation (OFF) time.

Customized Programs：

TENS : Adjustable Frequency: 1 Hz - 800 Hz, 1 Hz/step. and Adjustable Pulse width : 50 us - 300 us, 1 us/step.

EMS : 1. Adjustable Frequency: 1 Hz - 800 Hz, 1 Hz/step. 2. Adjustable Pulse width : 50 us - 300 us, 1 us/step.

3. Ramp Up time : Adjustable, from 1 to 9 sec. 4. Contraction Time: Adjustable, from 1 to 60 sec. 5. Ramp Down Time: Adjustable,

from 1 to 9 sec. 6. Relaxation (OFF)time : Adjustable, from 1 to 60 sec.

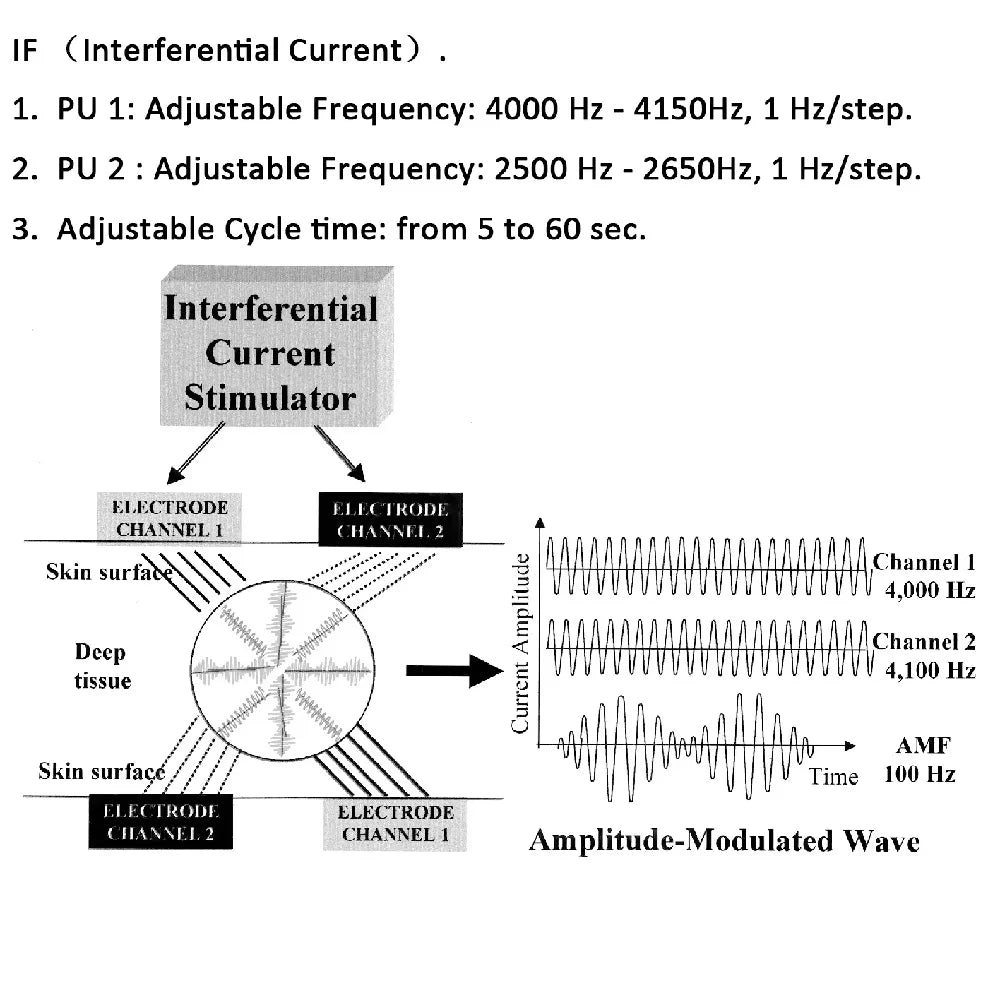

IF（Interferential Current）.

1. PU 1: Adjustable Frequency: 4000 Hz - 4150Hz, 1 Hz/step.

2. PU 2 : Adjustable Frequency: 2500 Hz - 2650Hz, 1 Hz/step.

3. Adjustable Cycle time: from 5 to 60 sec.

RUSS（Russian Stimulation）.

1. PU 1 : Adjustable Frequency: 2500 Hz - 2600Hz, 1 Hz/step.

2. PU 2 : Adjustable Frequency: 2000 Hz - 2100Hz, 1 Hz/step.

2. Adjustable Cycle time: from 5 to 60 sec.

Function：

TENS Function

1. Relieve arthritis pain and nerve pain.

2. Rehabilitation and treatment of post-operative pain.

3. Relieve post-traumatic pain and sciatica pain.

4. Relieve joint pain, chronic intractable pain.

5. Relieve pain for the back, knees, shoulder, ankles, wrists, elbows, etc.

6. Eliminate inflammation and physical fatigue caused by long-term work.?

EMS Function

Suitable for sportspeople: Pre-training warming up and Post-training recovery (Endurance/Maximum strength/Explosive

Strength/Toning).

1. Retarding or preventing muscle atrophy.

2. Relax muscle spasms and reduce muscle soreness.

3. Increase muscle growth and increase local blood circulation。

IF （Interferential Current）

Function: Promote tissue healing, improve circulation to injured tissues, pain relief, relieve muscle spasms, edema reduction, and stimulate deeply situated muscles such as the pelvic floor muscles. chronic intractable pain and post-surgical and post-trauma acute pain relief.

RUSS （Russian Stimulation）

Function: Strengthening muscles, increasing muscle size, improving muscular endurance, accelerating muscle recovery and reducing

muscle spasms.

Especially for athletes: such as anterior cruciate ligament (ACL) tears, with physical therapy programs to improve strength.

Note：IF is Interferential Current(4000Hz), RUSS is Russian Stimulation(2500Hz). TENS and EMS are low-frequency, IF and RUSS are medium-frequency.
